Kramer SID-X1N, Bộ truyền tín hiệu đa định dạng qua đường mạng, độ phân giải WUXGA (1920x1200)

Mã sản phẩm: SID-X1N | 346 lượt xem
0 điểm | 0 đánh giá
Hiện trạng: Hàng có sẵn
Xuất xứ: Kramer -
Bảo hành: 1 năm
Tải catalog sản phẩm
Kramer SID-X1N

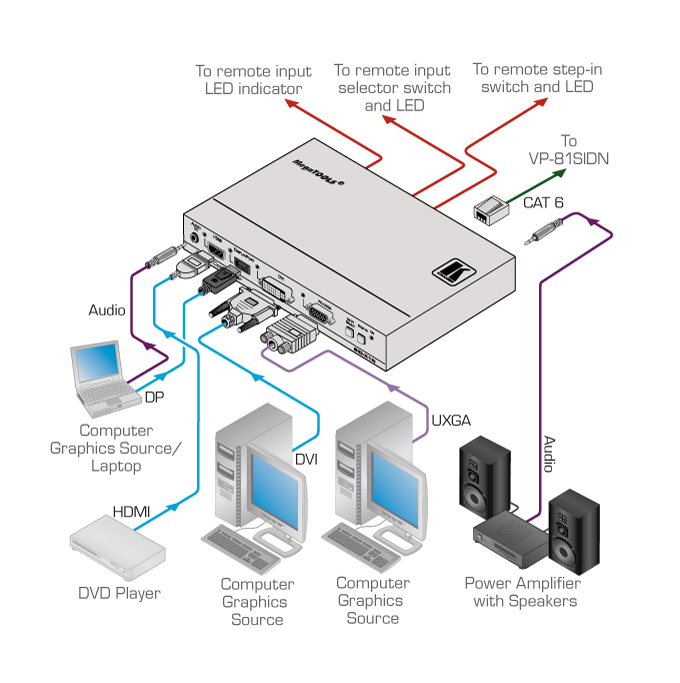

The SID−X1N is a DGKat™ twisted pair transmitter and step−in commander for computer graphics video, HDMI, DVI, DisplayPort and unbalanced stereo audio signals The unit includes a “Step−In” button that allows the local source to be routed as the active source on the main display through the main switcher

  •     Max Data Rate - 495Gbps (165Gbps per graphics channel)
  •     Compatible Switcher - VP−81SIDN
  •     HDTV Compatible
  •     HDCP Compliant - Works with sources that support HDCP repeater mode
  •     HDMI Support - xvColor™ and 3D
  •     I-EDIDPro™ Kramer Intelligent EDID Processing™ - Intelligent EDID handling processing algorithm ensures Plug and Play operation for HDMI systems
  •     Data Equalization and Reclocking
  •     Input Signal Detection - Based on video clock presence
  •     Automatic Input Selection - Based on manual selection or last connected input
  •     Automatic Analog Audio Detection and Embedding
  •     Local Balanced Audio De-embedding
  •     Support for Digital Audio Formats
  •     Lockable EDID
  •     DGKat™ Signal Integration - Kramer’s unique technology for converting TMDS as well as control and communication to signals that run over twisted pair cables We strongly recommend using Kramer DGKat™ cables designed specifically for optimum performance
  •     Cable - Requires STP (shielded twisted pair) cable For optimum range and performance, use Kramer's BC−DGKat623 or BC−DGKat7a23 cables Note that the transmission range depends on the signal resolution, graphics card and display used The distance using non−Kramer CAT 6 and CAT 7 cables may not reach these ranges Use only shielded cable where both ends of the shield are soldered to ground
  •     Power Connect™ System - A single connection to the transmitter powers both units when the devices are within 150ft (50m) of each other
  •     Local Step-In Switching - Button & contact closure
  •     Power Supply - Requires independent power supply

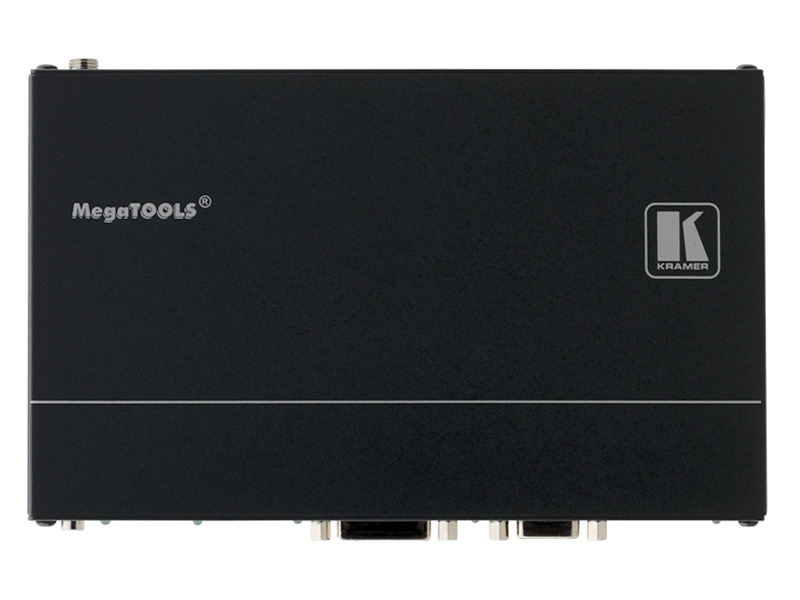

  •     Size - Compact MegaTOOLS® - 2 units can be rack mounted side-by-side in a 1U rack space with the optional RK-T2B rack adapter

Applications:

  • Boardrooms
  • Presentation rooms

Phụ kiện đi kèm

    Không có phụ kiện nào

Sản phẩm nên mua cùng

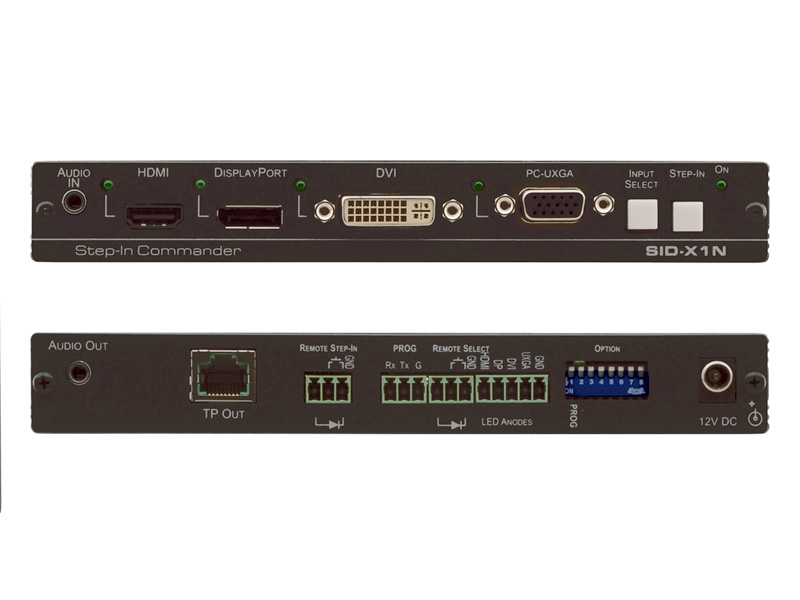

INPUTS: 1 HDMI on an HDMI connector, 1 DP on a DisplayPort connector, 1 DVI−D on a DVI−I connector
1 VGA on a 15−pin HD (F) connector, 1 unbalanced stereo audio on a 3.5mm mini jack.
OUTPUTS: 1 twisted pair on an RJ−45, 1 unbalanced stereo audio in a 3.5mm mini jack.
PORTS: 1 RS−232 3−pin terminal block for programming.
CONTROLS: Front panel buttons, remote step−in switch, remote input selection switches, RS−232.
ANALOG AUDIO INPUT: Maximum level − 3Vpp.
REMOTE LED IMPEDANCE: 5V, 300Ω approx.
STANDARDS: HDMI with x.v.Color™ and 3D; HDCP: works with sources that support HDCP repeater mode.
MAXIMUM DATA RATE: 4.95Gbps (1.65Gb per graphics channel).
MAXIMUM STEP-IN DISTANCE: 50m (164ft) up to 1080p @60Hz @24bpp.
POWER CONSUMPTION: 12V DC, 1.1A.
COMPLIANCE STANDARDS: CE, UL.
OPERATING TEMPERATURE: 0° to +40°C (32° to 104°F).
STORAGE TEMPERATURE: –40° to +70°C (–40° to 158°F).
HUMIDITY: 10% to 90%, RHL non−condensing.
COOLING: Convection, vents.
ENCLOSURE TYPE: Aluminium.
DIMENSIONS: 18.8cm x 11.3cm x 2.5cm (7.4” x 4.5” x 1”) W, D, H rack−mountable.
WEIGHT: 0.48kg (1.1lbs) approx.
INCLUDED ACCESSORIES: Power adapter.
OPTIONS: RK−T2B 19“ rack adapter, RTBUS−12, RTBUS−22, SID−X1NBP Kit (substitute black top plate for the SID−X1N to blend in with the color of the modular TBUS−10xl).
