SWIT S-9204, 4-SDI Multiviewer và Switcher, 19" rack 1U, ngõ ra HDMI multiview, ngõ ra PGM qua SDI

Mã sản phẩm: S-9204 | 367 lượt xem
0 điểm | 0 đánh giá
Hiện trạng: Đặt hàng 2 tuần
Xuất xứ: SWIT -
Bảo hành: 12 Tháng chính hãng
SWIT S-9204

4-SDI Multiviewer via HDMI

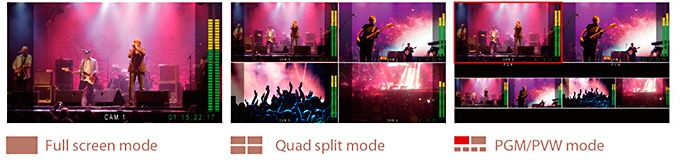

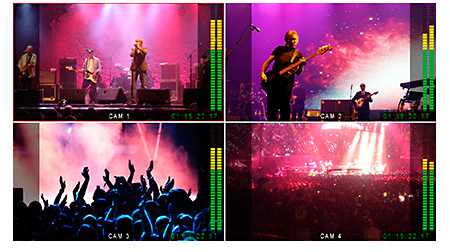

S-9204 is a solution of monitoring 4-ch SDI by a single HDMI monitor or television. There’re 3 display modes: Quad-split display, one channel full screen switching display, and PGM/PVW switcher mode display.

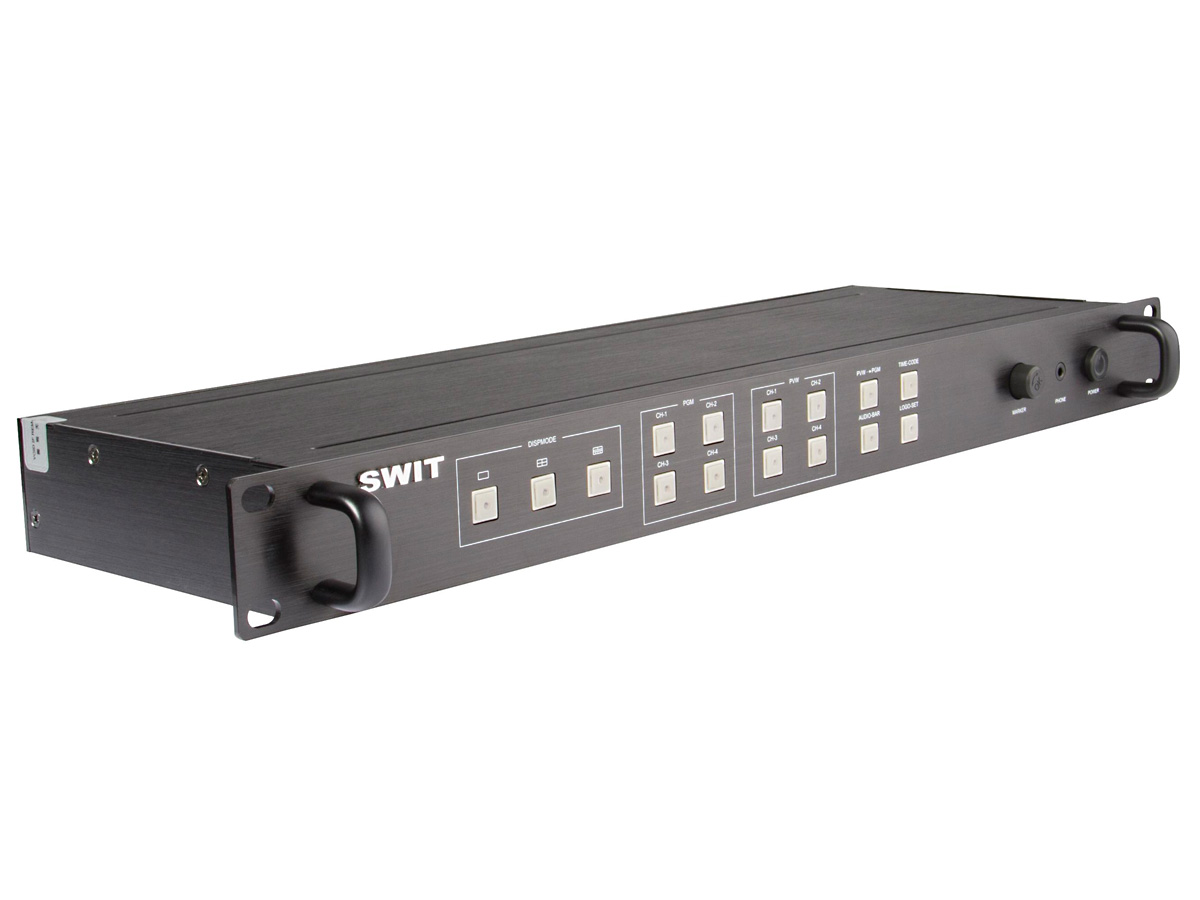

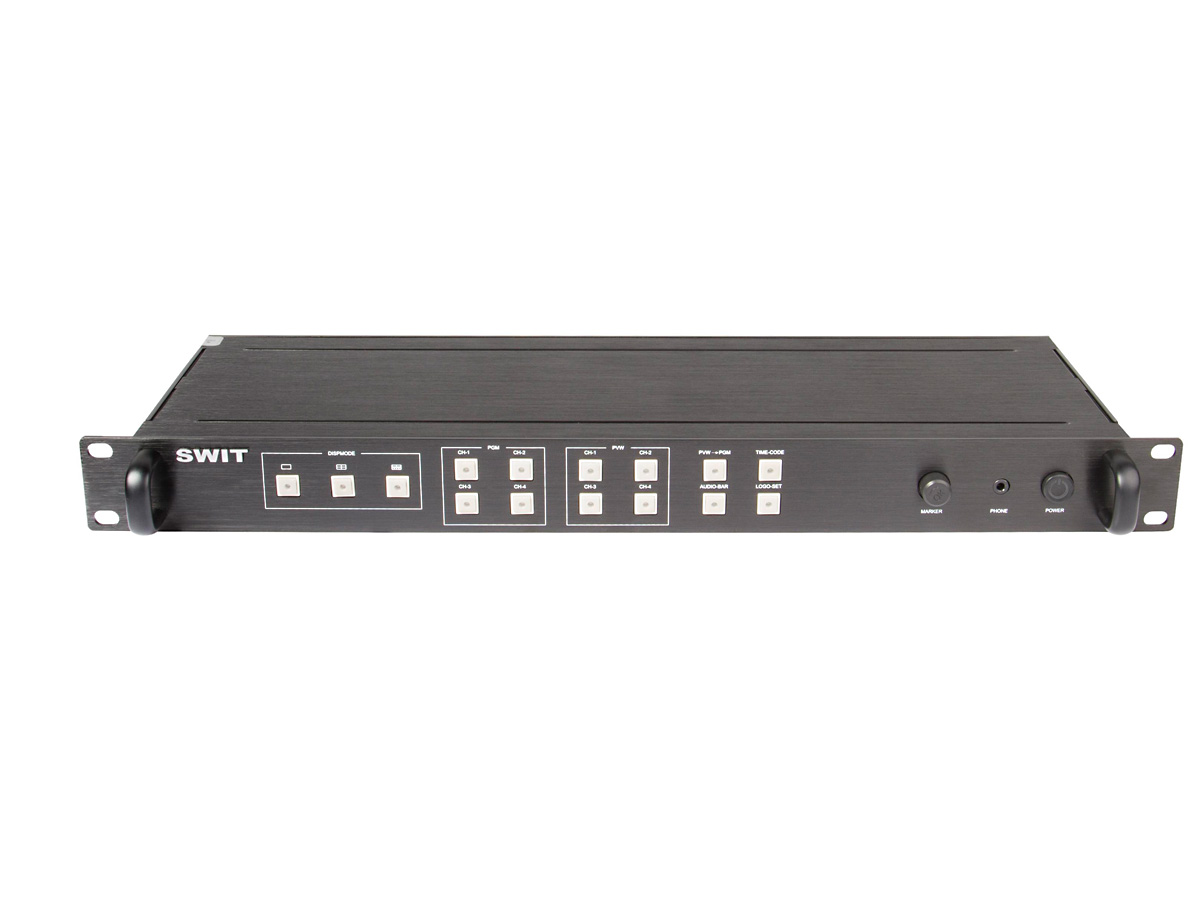

It’s 19-inch 1U designed, and can be installed in standard broadcast racks.



4-SDI Switcher via SDI



Now you can use S-9204 as a basic SDI switcher in the field producing.

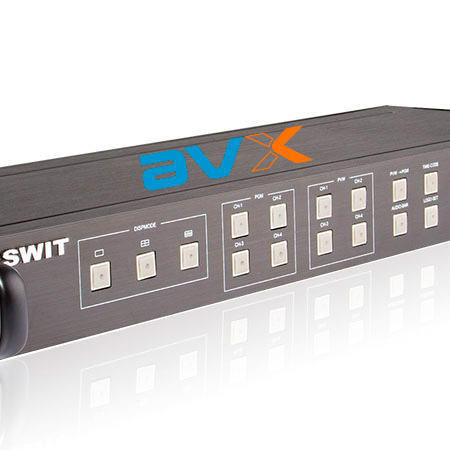

It support PGM channel output via SDI, direct switching by pressing the channel buttons on the front panel, and supports PVW to PGM switching under the PGM/PVW display mode.
The PGM switching output offers zero delay

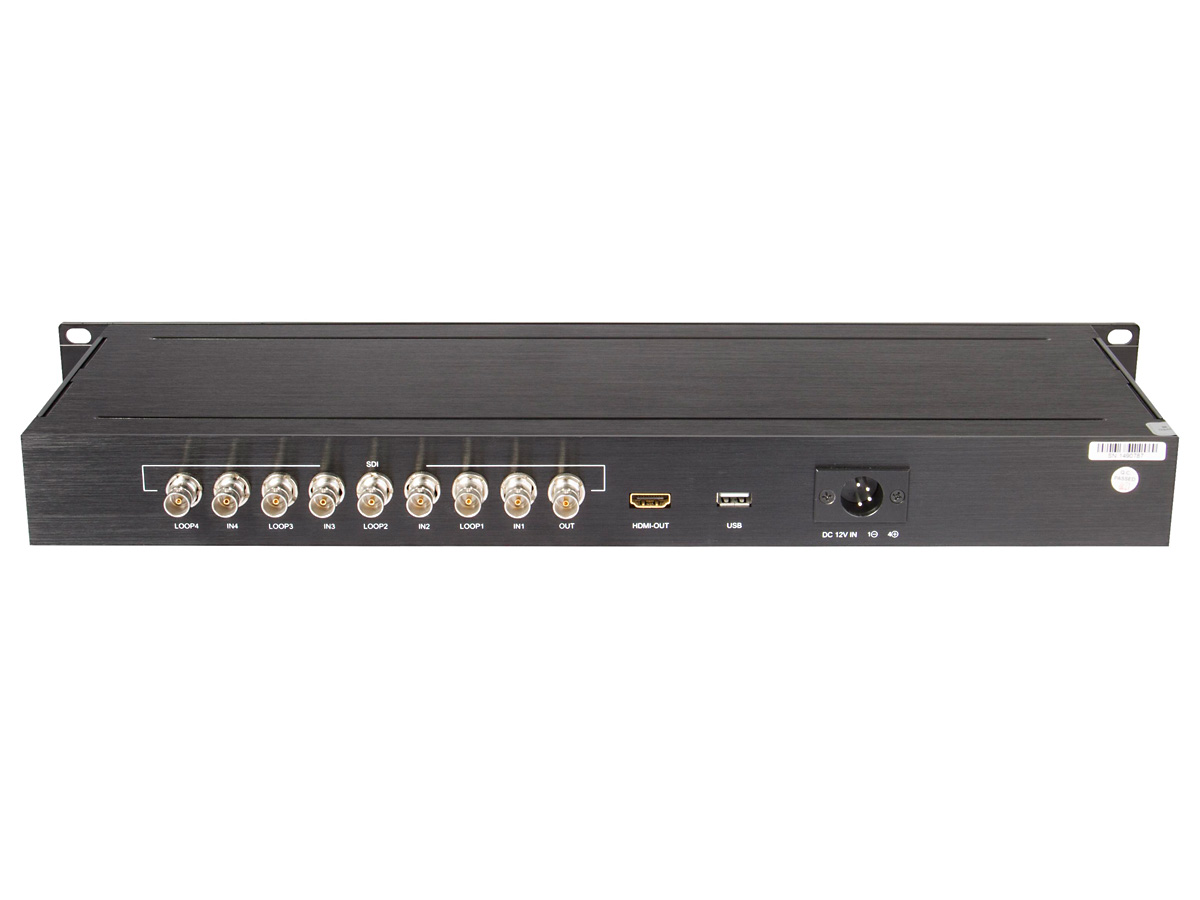

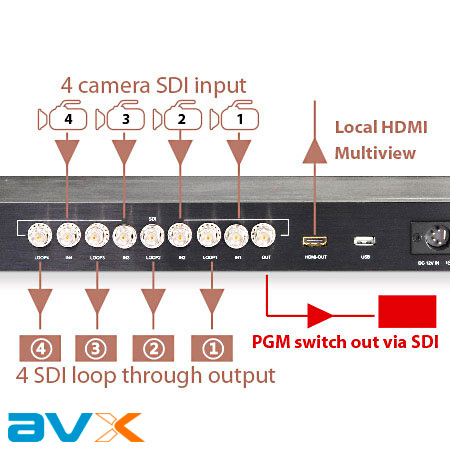

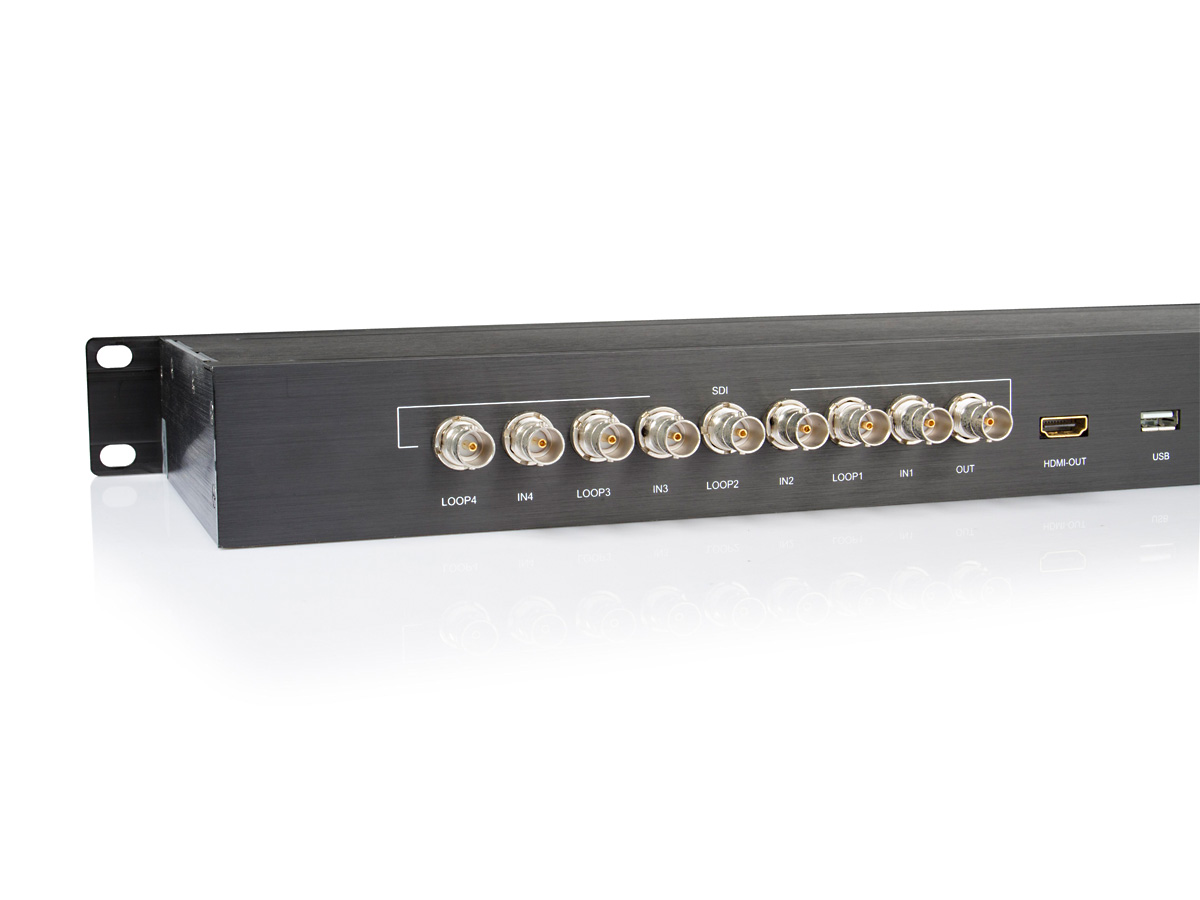

Input and Output

S-9204 Quad Viewer supports:
HD/SD-SDI input ×4
HD/SD-SDI loop output ×4
HDMI Quad-split output ×1
SDI switching output ×1
3.5mm analog audio output ×1

Note: The input SDI signals require the same format.




Embedded Audio Monitoring

By audio meters or headphone output


The HDMI multiview output supports 2 channels of SDI embedded audio meters display for each input channel. The audio meter is green, and will turn yellow when exceeds -20dB, and turn red when exceeds -9dB.
And you can select the input channel to output SDI embedded audio via 3.5mm headphone socket

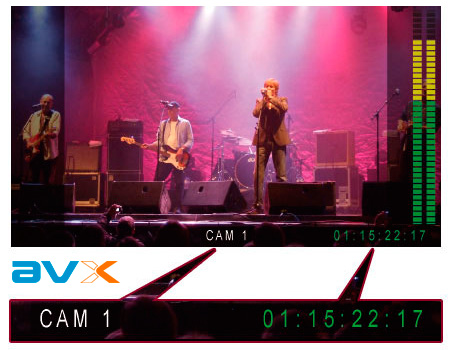

SDI Timecode, Channel Title


The SDI timecodes of each input channel can be displayed under HDMI multiview output. And you can also edit the channel title for each input video easily by pressing the keys on the front panel of S-9204




Power Supply


The S-9204 can be powered via the 4-pin XLR socket of DC 12V input on the rear panel.
A 4-pin XLR power adaptor is provided in the product package

Phụ kiện đi kèm

    Không có phụ kiện nào

Sản phẩm nên mua cùng

Ngõ vào
Ngõ vào HD/SD-SDI 4 ngõ vào BNC
Ngõ ra
Ngõ ra HD/SD-SDI loop 4 ngõ vào BNC
Ngõ ra HD/SD-SDI PGM switching 1 ngõ ra BNC
Ngõ ra HDMI multiview 1 ngõ ra HDMI
Ngõ ra SDI âm thanh 1 cổng 3.5mm
Định dạng video
Ngõ ra SDI

SMPTE-274M: 1080p (60 / 59.94 / 50), 1080p (30 / 29.97 / 25 / 24 / 23.98)

SMPTE-RP211: 1080psf (30 / 29.97 / 25 / 24 / 23.98)

SMPTE-296M: 720p (60 / 59.94 / 50)

SMPTE-125M: 480i (59.94)

ITU-R BT.656: 576i (50)

Ngõ ra SDI/HDMI Quad-split

SMPTE-274M: 1080p (60 / 59.94 / 50), 1080p (30 / 29.97 / 25 / 24 / 23.98)

SMPTE-RP211: 1080psf (30 / 29.97 / 25 / 24 / 23.98)

SMPTE-296M: 720p (60 / 59.94 / 50)

SMPTE-125M: 1080i60

ITU-R BT.656: 1080i50

Thông tin chung
Nguồn ≤8W
Điện áp DC 12V
Nhiệt độ hoạt động Nhiệt độ: 0°C-+40°C, độ ẩm:10%-90%
Kích thước 483 × 45 × 251mm
Khối lượng 1440g
